Specification:

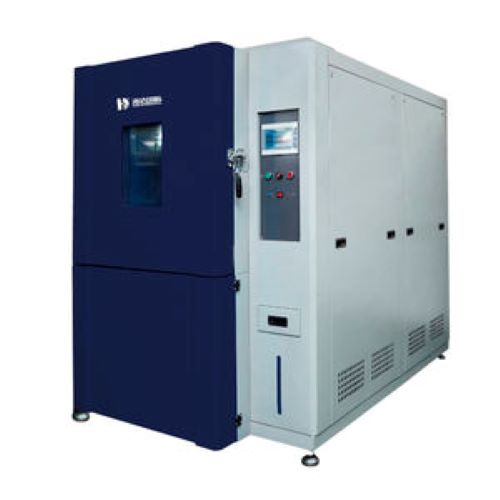

Temperature Humidity Vibration Three Integrated Test Chamber is a comprehensive meet all kinds of corresponding temperature, humidity, vibration test requirements.
Application
Can match appropriate vibration table. Meet all kinds of the corresponding temperature, humidity, vibration, three comprehensive test requirements. Widely used in aviation, aerospace, shipbuilding, electrical, electronics, communications and other fields
Features
Packaging
Each set protected with resin fiber and PP film, then put into strong wooden case with operation mannual and video inside.
After-sale service
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
The reasons why class enterprises choose us
Specifications
|
Model |
THV-408 |
THV-1000 |
|
|
Working chamber volume ( L ) |
408 |
1000 |
|
|
Interior size ( W*H*D ) mm |
600*850*800 |
1000*1000*1000 |
|
|
Ambient temp |
+5 C +35 C |
||
|
Performance |
Temp range |
-70 C +150 C |
|
|
Temp constancy |
0.5 C |
||
|
Temp uniformity |
2.0 C |
||
|
Humidity constancy |
2.5%RH |
||
|
Humidity range |
2.0%RH 98%RH |
||
|
Humidity uniformity |
If humidity75%RHJ, 3.0%RH ; f humidity > 75%RHJ, 5.0%RH |
||
|
Cooling rate |
5 C /Min or 10 C /Min ( -55 C +80 C within humidity range ) |
||
|
Material |
Interior material |
Stainless steel plate(SUS 304) |
|
|
Exterior material |
Baked painting steel or stainless steel(SUS304) |
||
|
Insulation material |
Rigid polyurethane foam |
||
|
Cooling system |
compressor |
Semi-Hermetic Compressor |
|
|
Cooling mode |
Water cooled |
||
|
Temp regulating mode |
Balanced Temperature & Humidity Control System ( BTC ) |
||
|
Heater |
Iron-chrome wire heater |
||
|
Blower |
Centrifugal Blower |
||
|
Sight window |
470mm*350mm Glass incorporating heat generator |
||
|
Temp sensor |
Pt-100 |
||
|
Controller |
Touch screen controller |
||
|
Shaking table |
Custom made as required |
||
|
Safety device |
Over temp. protection, over load protection for blower, |
||
|
Standard Accessories |
sight window, cable port, baffle, baffle frame*2, chamber lamp |
||
|
Optional Accessories |
Special cable port, special shelves, addtional baffle |
||
|
Power |
AC 380V/50Hz ,3phase 5 wires+ Ground wire |
||
