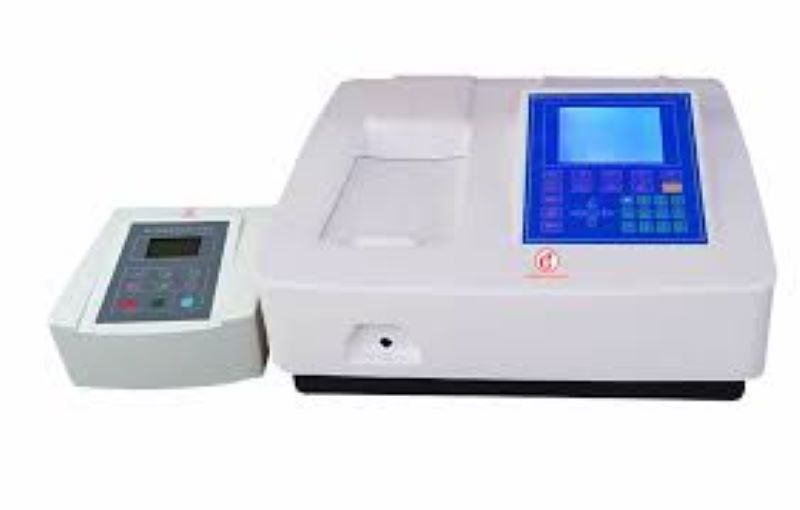

Single Beam Spectrophotometer

Name: Single Beam Spectrophotometer
Brand: MKP Equipments
Price: 60000.0 INR
Availability: InStock

Price 60000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Single Beam Spectrophotometer Specification

Display Type
LCD Display

Power Supply
Electric

Dimension (L*W*H)
100 x 55 x 58 Centimeter (cm)

Color
White

Voltage
220 to 240 Volt (v)

Material
ABS Plastic

Application
Laboratory Model

Warranty
1 Year

Single Beam Spectrophotometer Trade Information

Minimum Order Quantity
1 Piece

FOB Port
MADURAI

Payment Terms
Cash on Delivery (COD), Cash Advance (CA)

Supply Ability
1 Piece Per Day

Delivery Time
2 Week

Sample Available
No

Sample Policy
Free samples are available

Main Export Market(s)
Asia

Main Domestic Market
Goa, Jharkhand, Odisha, Punjab, Delhi, Dadra and Nagar Haveli, Andaman and Nicobar Islands, Arunachal Pradesh, Chhattisgarh, Haryana, Himachal Pradesh, Jammu and Kashmir, Madhya Pradesh, Maharashtra, Nagaland, Rajasthan, Sikkim, Tamil Nadu, Telangana, Tripura, Pondicherry, Uttarakhand, West Bengal, Uttar Pradesh, All India, South India, Central India, West India, North India, East India, Gujarat, Lakshadweep, Karnataka, Mizoram, Kerala, Assam, Meghalaya, Manipur, Andhra Pradesh, Bihar, Chandigarh, Daman and Diu

About Single Beam Spectrophotometer

Specification:

Salient Features

Highly stable and accurate
Single beam optics
8 lamp turret
User friendly software
Range: 190 - 900 nm
1800 lines grating

Computer controlled, high performance, optically single beam atomic absorption spectrometer having following specifications.

Optics
Real time single beam with Deuterium background

Monochromator
CZ design with 330 mm focal length, 1800 line/mm grating and 185-930 nm wavelength range. Automatic emission wavelength selection and peaking. Continuously variable slits with 0.2 to 2 nm spectral bandwidth. Automatic wavelength scanning. Selected wide range.

Detector
High performance multi-alkali photo multiplier tube R928

Motorized Lamp Turret
Eight lamp motorized turret with automatic lamp selection and individual lamp peaking automatically warmed up. Compatible with standard & coded hollow cathode lamps

Flame Control
Manual flame control fully safe and sturdy having independent flow meter regulator for fuel and oxidant.

Nebulizer
Fully inert nebulizer

Spray Chamber
PTFE spray chamber and adjustable impact bead aerosol.

Burner
Titanium burner for C2 H2 - N2O & C2H2 - AIR

Sensitivity
Greater than 0.7 abs for 5mg/L copper solution with an RSD of less than 0.5% characterstics concentration of copper 0.030 ug/ml.

Output Port
USB Connectivity for PC

Software
Windows 10 based user friendly software.

Dimension
100 x 55 x 58 cm (L x H x W) cm

Weight
65 kg, Unpacked

Electrical Requirements
220/240 V AC, 50/ 60 Hz, 800 VA

Hollow Cathode Lamps
67 Element high intensity single element available

Accessories
Software CD
USB Cable
Manual
Cathode Lamps (optional)
Acetylene Cylinder (optional)
Nitrous Oxide Cylinder (optional)
Regulators (optional)
Moisture Filter (optional)
