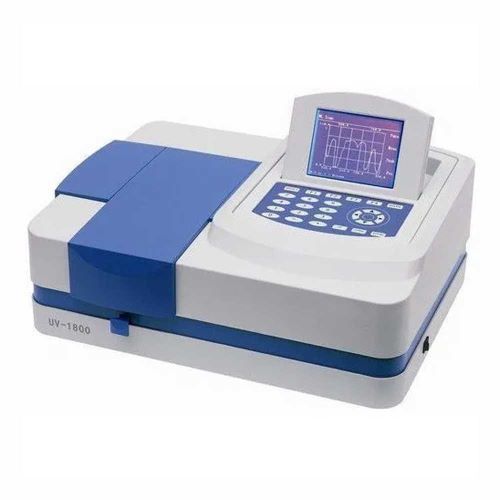

Double Beam Spectrophotometer

Name: Double Beam Spectrophotometer
Brand: MKP Equipments
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Double Beam Spectrophotometer Specification

Power Supply
Electric

Display Type
LCD Display

Dimension (L*W*H)
100 x 55 x 58 Centimeter (cm)

Color
White Blue

Voltage
220 to 240 Volt (v)

Material
ABS Plastic

Application
Laboratory

Warranty
1 Year

Double Beam Spectrophotometer Trade Information

Minimum Order Quantity
1 Piece

FOB Port
MADURAI

Payment Terms
Cash on Delivery (COD), Cash Advance (CA)

Supply Ability
1 Piece Per Day

Delivery Time
2 Week

Sample Available
No

Sample Policy
Free samples are available

Main Export Market(s)
Asia

Main Domestic Market
Bihar, Chandigarh, Daman and Diu, Goa, Dadra and Nagar Haveli, Madhya Pradesh, Maharashtra, Nagaland, Tamil Nadu, Telangana, Tripura, Pondicherry, Uttar Pradesh, Jharkhand, Odisha, Assam, Delhi, Rajasthan, Sikkim, Andaman and Nicobar Islands, Arunachal Pradesh, Chhattisgarh, Haryana, Himachal Pradesh, Jammu and Kashmir, All India, Punjab, Meghalaya, Uttarakhand, West Bengal, South India, Central India, West India, North India, East India, Gujarat, Karnataka, Kerala, Lakshadweep, Mizoram, Manipur, Andhra Pradesh

About Double Beam Spectrophotometer

Specification:

Salient Features

Highly stable and accurate
True double beam optics
8 lamp turret
User friendly software
Range: 185 - 930 nm
1800 lines grating (USA)
Variable bandwidth software

Computer controlled, high performance, optically double beam atomic absorption spectrometer having following specifications.

Optics
Real time double beam with Deuterium background

Monochromator
CZ design with 330 mm focal length, 1800 line/mm grating and 185-930 nm wavelength range. Automatic emission wavelength selection and peaking. Continuously variable slits with 0.2 to 2 nm spectral bandwidth. Automatic wavelength scanning. Selected wide range.

Detector
High performance multi-alkali photo multiplier tube R928

Motorized Lamp Turret
Eight lamp motorized turret with automatic lamp selection and individual lamp peaking automatically warmed up. Compatible with standard & coded hollow cathode lamps

Background Correction
Deuterium arc radiation Ultra Fast-Pulse 1024 Hz background corrector wave length correction range 185-425 nm, Corrects to 2.5 total absorbance

Nebulizer
Fully inert nebulizer

Spray Chamber
PTFE spray chamber and adjustable impact bead aerosol.

Burner
Titanium burner for C2 H2 - N2O & C2H2 - AIR

Automatic Flame Control Unit
Programmable gas controller with digital display of flow, Full safety interlock including built in pressure regulator on both lines, power failure protection, auto shut down of flame, burner drain, door interlock and electronic flame igniter & real time status sensing, fitted bung and pressure relief bung.

Sensitivity
Greater than 0.7 abs for 5mg/L copper solution with an RSD of less than 0.5% characterstics concentration of copper 0.030 ug/ml.

Output Port
USB Connectivity for PC

Software
Windows 10 based user friendly software.

Dimension
100 x 55 x 58 cm (L x H x W) cm

Weight
65 kg, Unpacked

Electrical Requirements
220/240 V AC, 50/ 60 Hz, 800 VA

Hollow Cathode Lamps
67 Element high intensity single element available

Accessories
Software CD
USB Cable
Manual
Cathode Lamps (optional)
Acetylene Cylinder (optional)
Nitrous Oxide Cylinder (optional)
Regulators (optional)
Moisture Filter (optional)
